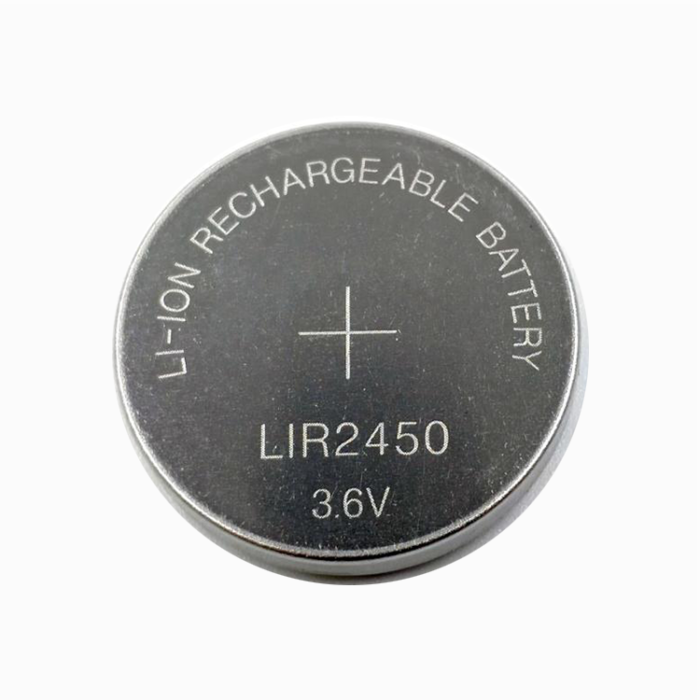

lir2450 3.6v rechargeable battery coin cell 120mah
Brand：Amtoxe
Model：LIR2450
voltage：3.6V
Dimension：24*5.0mm
Capacity：120mAh
Battery Type：3.6V Lithium ion Coin Battery
Work Temperature：-20~+60 degree
Nominal Current：2C
if Rechargeable：Yes
Application：Smart watch, toys, cay key
Description
|
Product Feature
|
Li-ion rechargeable button coin battery/cell
|
|
Model
|
LIR2450
|
|
Nominal Voltage
|
3.6V
|
|
Nominal Capacity
|
120mAh
|
|
Dimensions
|
24.5(D)x5.0(H)mm
|
|
Approx Weight
|
5.5g
|
|
Charge Cut-off Voltage
|
4.2±0.05V
|
|
Discharge Cut-off Voltage
|
2.75V
|
|
Charge current
|
Standard charge: 24mA(0.2C), Max charge: 120mA(1C)
|
|
Discharge Current
|
Standard discharge: 24mA(0.2C), Max discharge: 120mA(1C)
|
|
Operating Temperature
|
Standard Charge: 0~+45℃,
Standard Discharge: -20~+60℃ |
|
Storage Temperature
|
0℃~35℃
|
|
Available Terminations
|

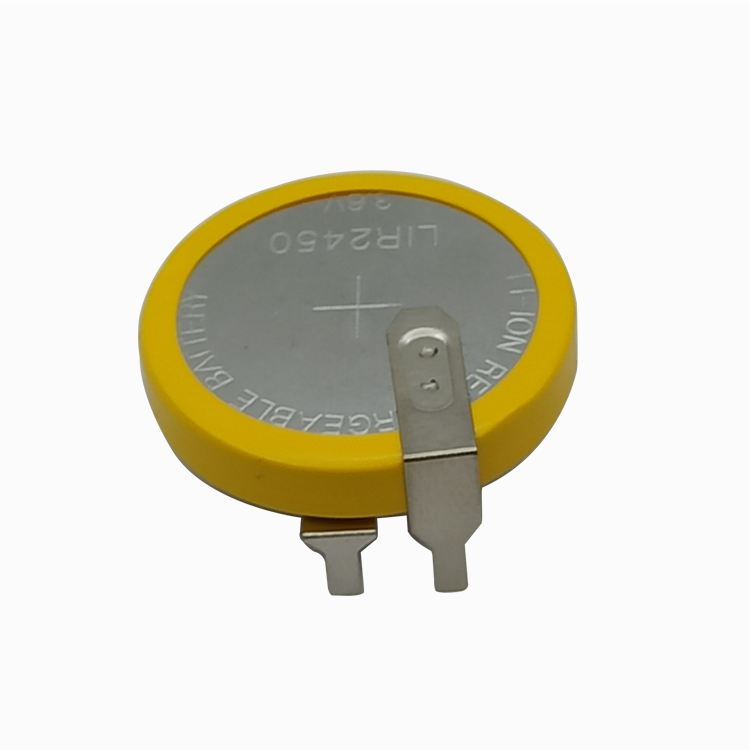

solder tabs/pins, connectors with wires(flying leads)
|
|
Certifications
|
CE, ROHS, UN38.3, MSDS
|
|
OEM Service
|
Yes
|
FAQ:
Q: Can I have a sample order?
A: Yes, welcome!
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs negotiation.
Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for a formal order. Fourthly we arrange the production.
Q: Can you supply OEM service?
A: Yes, it’s OK to print my logo on the product. OEM is available.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Any questions, please feel free to Click here and send us an inquiry.
